Organ distributor

Organ distributor Prodo

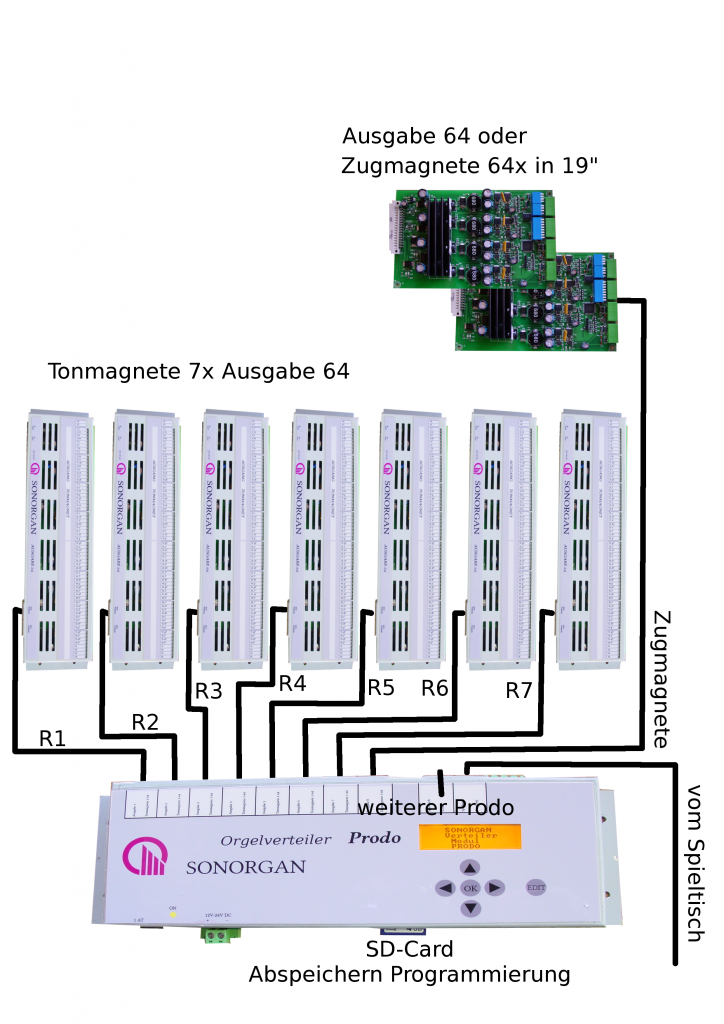

The organ distributor Prodo receives the signals via the data bus
of the console. These are sent via the eight outputs  to the
Output modules. There are 64 channels per output.
Several organ distributors can be connected.
The programming is done by the built-in editor.



.

.

.

.

.

.

.



Function: N = normal
P = supercoupling
U = subcoupling
2P = 2x super coupler
2U = 2x sub coupler
Ci = C Cis splitting
NC = C side only
Ni = Cis side only
